Migrating data from Oracle to MS Access(.mdb; .accdb)

This guide walks you through migrating data from Oracle to MS Access in a few simple steps using ESF Database Migration Toolkit. Simplify complex migration tasks and save valuable time with our streamlined approach.

Oracle vs. MS Access:

Oracle is a leading multinational computer technology corporation specializing in database management systems. Renowned for its robust and scalable database solutions, Oracle offers a comprehensive suite of products encompassing database technologies, cloud applications, and enterprise software. With a global presence and a reputation for innovation, Oracle serves diverse industries including finance, healthcare, retail, and manufacturing, empowering organizations to manage, secure, and analyze their data efficiently to drive business success.
Microsoft Access is a robust database management system (DBMS) that combines the relational Microsoft Jet Database Engine with a graphical user interface and software development tools. As part of the Microsoft Office suite, MS Access provides users with an easy-to-use platform for creating and managing databases, enabling efficient data entry, query execution, and report generation. It supports various data formats, allows integration with other Microsoft applications, and is ideal for small to medium-sized databases used in business and personal applications.

Prerequisite:

Software Required:

DMToolkit_x64.zip (63.5 MiB)	64-bit Windows application for ESF Database Migration Toolkit 12.2.09 (2025-07-17). (md5: af00d640b9e71618ed20932c52f4688d)
DMToolkit_win32.zip (58.8 MiB)	32-bit Windows application for ESF Database Migration Toolkit 12.2.09 (2025-07-17). (md5: 1b7566ee53ff21b6dc8444741b9da73a)

System Supported:
- Windows 7 or higher.
- Oracle 11g or higher.
- MS Access 97 or higher.

Step by Step Wizard:

Configure Oracle Data Source
- In the "Choose a Data Source" dialog:
  - Select "Oracle"
- Enter server details:
  - Server name: localhost (default)
  - Port: 1521 (default)
- Provide authentication:
  - Username: system (default)
  - Associated password
- Select logon method:
  - Choose from: SID, Service_Name, or TNS
- Database specification:
  - For SID/Service_Name: Enter value in Database field
  - For TNS: Leave Database field empty
- Schema configuration:
  - Enter schema name (defaults to username)
  - Optional: Click Refresh to view available schemas

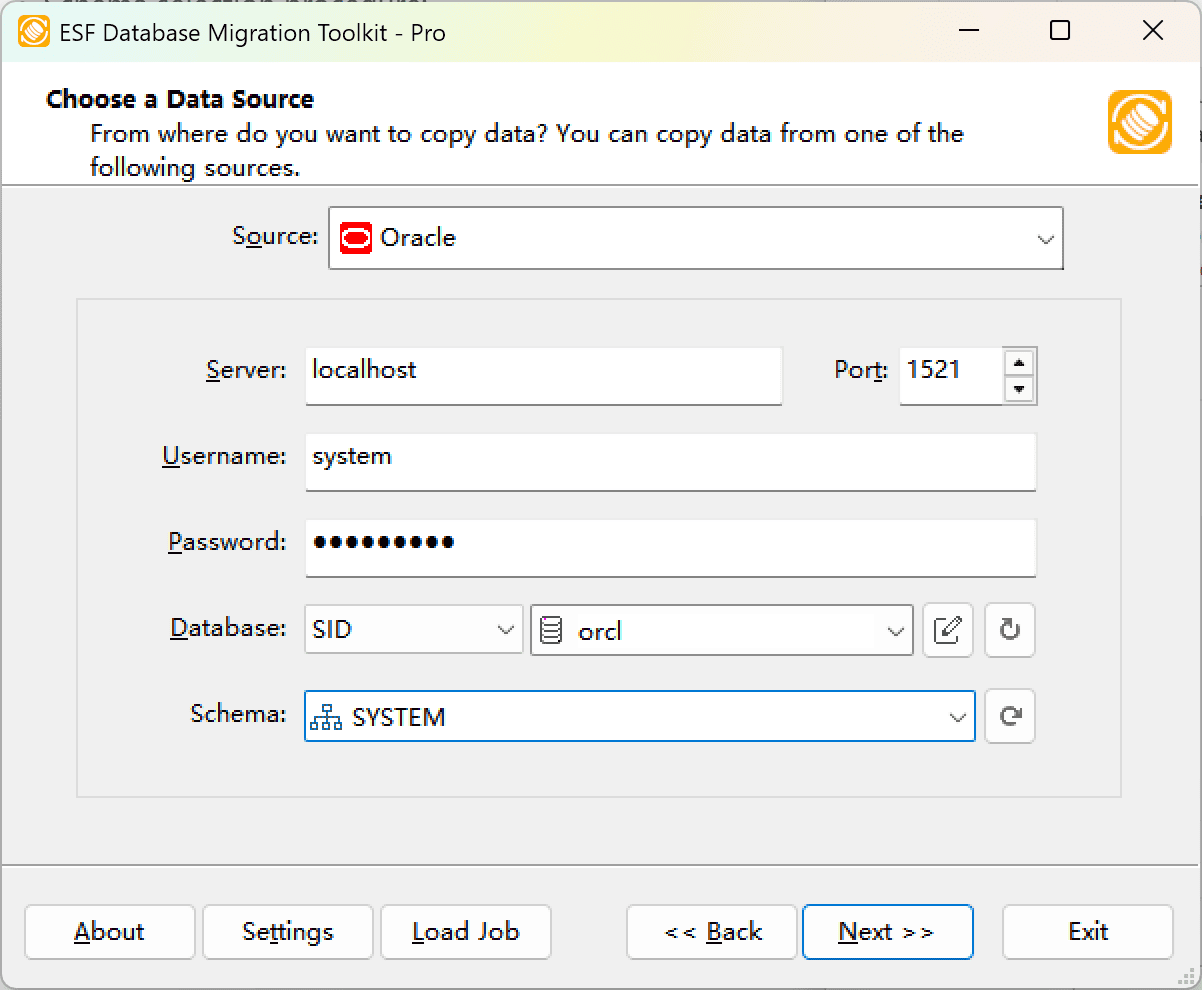

Fig. 1: Oracle data source configuration
Configure Microsoft Access Destination
- In the "Choose a Destination" dialog:
  - Select "Microsoft Access (*.mdb;*.accdb)"
- File selection:
  - Click the "..." button (Browse)
  - Select target .mdb or .accdb file
- Workgroup security configuration (if applicable):
  - Click the Lock button
  - Set system database in security dialog
Fig. 2: Microsoft Access destination configuration
In "Select Source Table(s) & View(s)" Dialog
- Select migration objects: Choose tables or views to include in the migration.

  Fig. 3: Select tables and views
- Modify table structure: Click the ellipsis (...) button to access table options and schema adjustments.

  Fig. 4: Do transform
- Configure field mapping: In the Field Mapping options:
  - Customize destination fields (name, data type, default value, comments)
  - Select data transfer method:
    - Overwrite Table (replace existing data)
    - Empty Data (truncate before insert)
    - Append Data (add to existing data)
    - Skip Table (exclude from transfer)
  - Apply data filters before transfer
Execution Dialog
- Start migration: Click "Submit" to initiate automated data transfer from Oracle to MS Access.

  Fig. 5: Execute migration
- Monitor progress: Click "Browse Log" for real-time migration tracking, including issue resolution details.
- Save configuration: Click "Save as job" to store settings for:
  - Quick reloads of migration jobs
  - Command-line execution (use: dmtc.exe --help for parameter options)
Finished!

After migration completes, the toolkit generates a comprehensive report for verifying migration accuracy. You can monitor progress as the automated process runs efficiently. For any questions or feedback, contact us – our team is ready to assist.
