Migrating data from MS Access(.mdb; .accdb) to MariaDB

This guide walks you through migrating data from MS Access to MariaDB in a few simple steps using ESF Database Migration Toolkit. Simplify complex migration tasks and save valuable time with our streamlined approach.

MS Access vs. MariaDB:

Microsoft Access is a robust database management system (DBMS) that combines the relational Microsoft Jet Database Engine with a graphical user interface and software development tools. As part of the Microsoft Office suite, MS Access provides users with an easy-to-use platform for creating and managing databases, enabling efficient data entry, query execution, and report generation. It supports various data formats, allows integration with other Microsoft applications, and is ideal for small to medium-sized databases used in business and personal applications.
MariaDB is a powerful open-source relational database management system (RDBMS) that originated as a fork of MySQL. It was developed by the original creators of MySQL in response to concerns over its acquisition by Oracle Corporation. MariaDB retains compatibility with MySQL while offering additional features, improved performance, and enhanced security. It is widely used in various applications ranging from small-scale web databases to large-scale enterprise systems, thanks to its flexibility, scalability, and active community support.

Prerequisite:

Software Required:

DMToolkit_x64.zip (63.5 MiB)	64-bit Windows application for ESF Database Migration Toolkit 12.2.09 (2025-07-17). (md5: af00d640b9e71618ed20932c52f4688d)
DMToolkit_win32.zip (58.8 MiB)	32-bit Windows application for ESF Database Migration Toolkit 12.2.09 (2025-07-17). (md5: 1b7566ee53ff21b6dc8444741b9da73a)

System Supported:
- Windows 7 or higher.
- MS Access 97 or higher.
- MariaDB 5.1 or higher.

Step by Step Wizard:

Configure Microsoft Access Data Source
- In the "Choose a Data Source" dialog:
  - Select "Microsoft Access (*.mdb;*.accdb)"
- Browse for database file:
  - Click the "..." button
  - Select your .mdb or .accdb file
- Configure workgroup security (for system databases):
  - Click the lock icon
  - Set workgroup settings in the security dialog

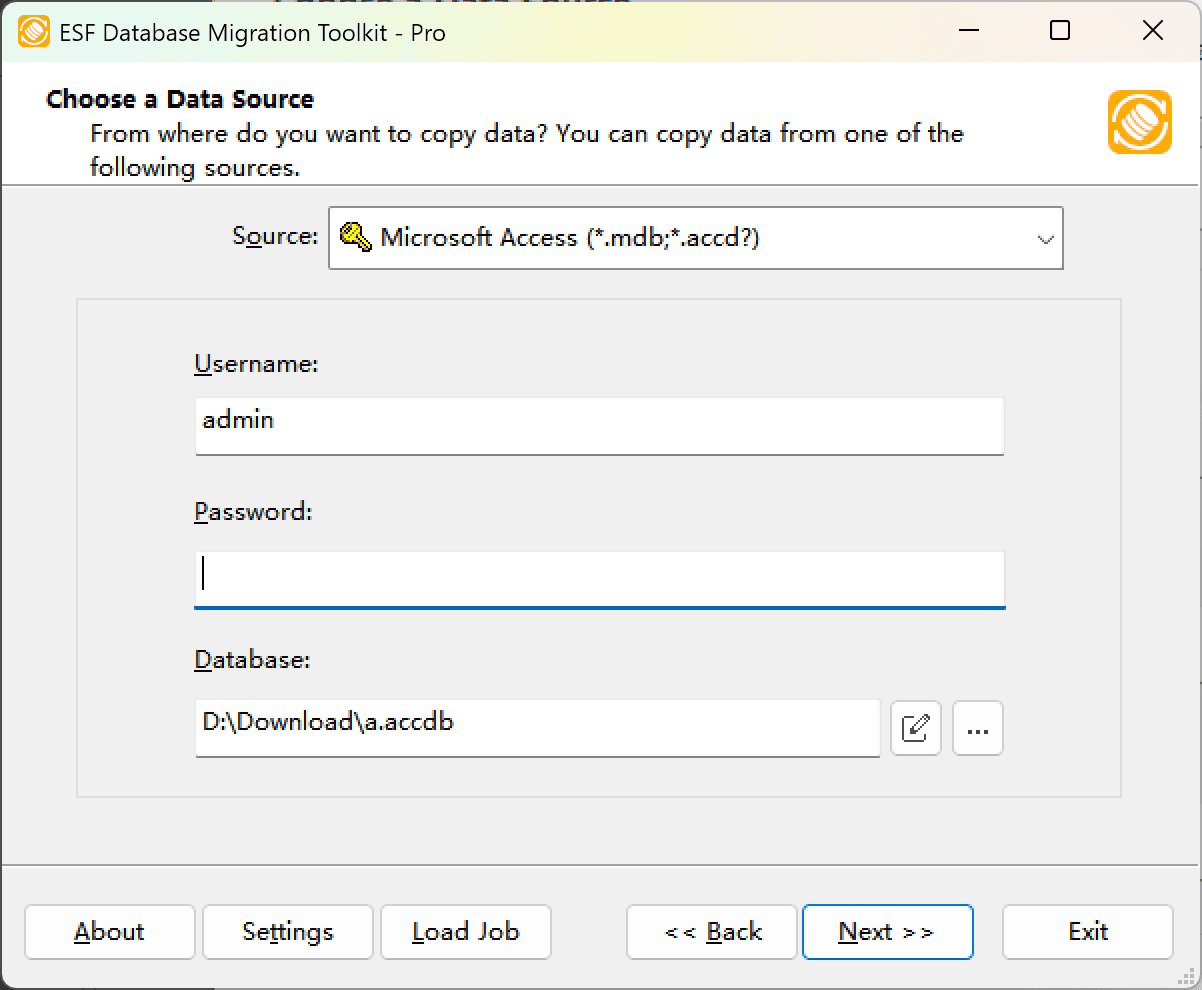

Fig. 1: Microsoft Access data source configuration
Configure MariaDB Destination
- In the "Choose a Destination" dialog:
  - Select "MariaDB"
- Enter connection details:
  - Server name: localhost (default)
  - Port: 3306 (default)
  - Username
  - Password
- Optional settings:
  - Select MariaDB Storage Engine
  - Choose character set (e.g., UTF-8)
- Database configuration:
  - Click the Refresh button to list available databases
  - Select existing database OR enter new database name
  - Note: Non-existent databases will be automatically created during migration

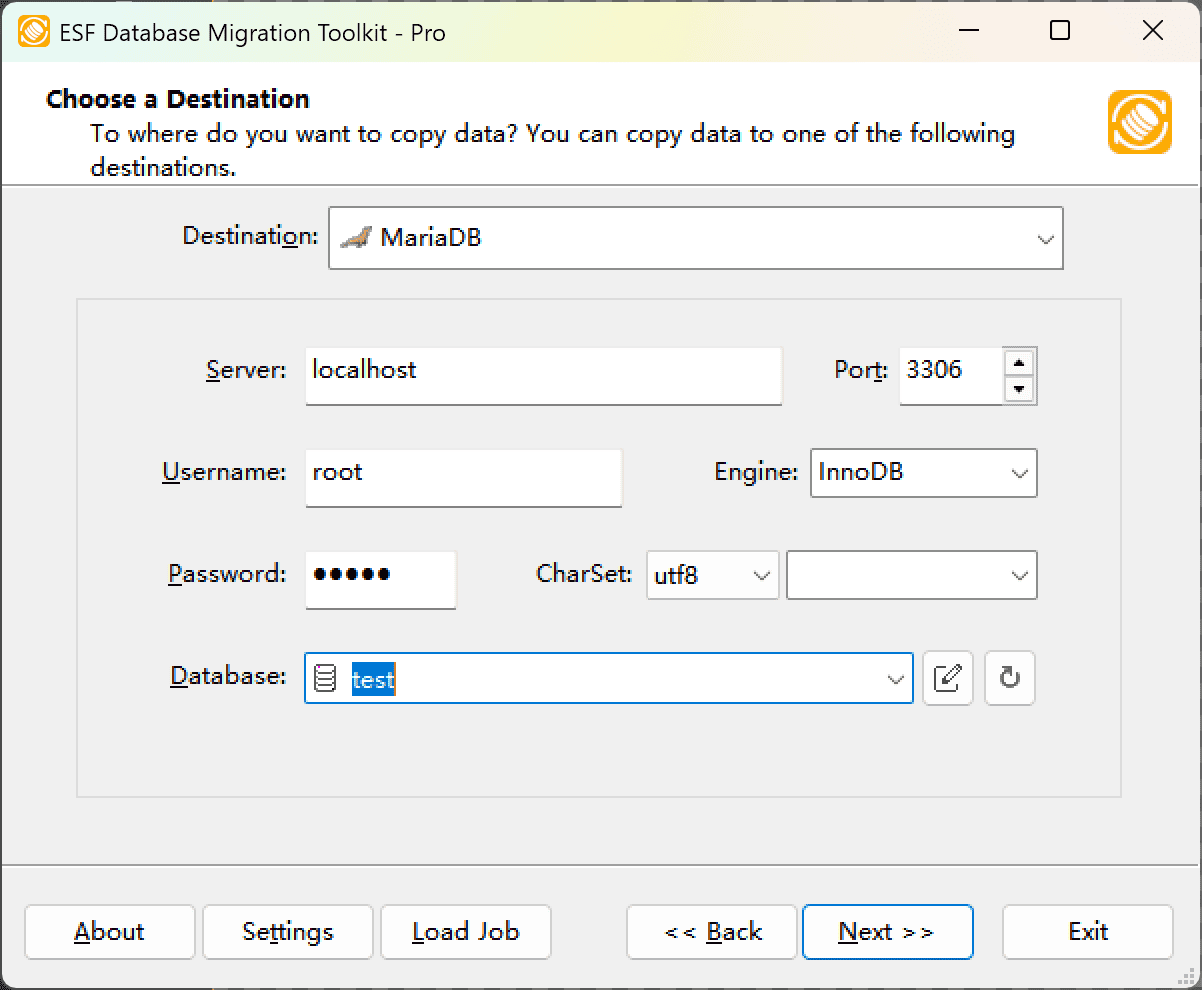

Fig. 2: MariaDB destination configuration
In "Select Source Table(s) & View(s)" Dialog
- Select migration objects: Choose tables or views to include in the migration.

  Fig. 3: Select tables and views
- Modify table structure: Click the ellipsis (...) button to access table options and schema adjustments.

  Fig. 4: Do transform
- Configure field mapping: In the Field Mapping options:
  - Customize destination fields (name, data type, default value, comments)
  - Select data transfer method:
    - Overwrite Table (replace existing data)
    - Empty Data (truncate before insert)
    - Append Data (add to existing data)
    - Skip Table (exclude from transfer)
  - Apply data filters before transfer
Execution Dialog
- Start migration: Click "Submit" to initiate automated data transfer from MS Access to MariaDB.

  Fig. 5: Execute migration
- Monitor progress: Click "Browse Log" for real-time migration tracking, including issue resolution details.
- Save configuration: Click "Save as job" to store settings for:
  - Quick reloads of migration jobs
  - Command-line execution (use: dmtc.exe --help for parameter options)
Finished!

After migration completes, the toolkit generates a comprehensive report for verifying migration accuracy. You can monitor progress as the automated process runs efficiently. For any questions or feedback, contact us – our team is ready to assist.
