Migrating data from Foxpro to IBM DB2

This guide walks you through migrating data from Foxpro to IBM DB2 in a few simple steps using ESF Database Migration Toolkit. Simplify complex migration tasks and save valuable time with our streamlined approach.

Foxpro vs. IBM DB2:

FoxPro is a text-based, procedural programming language and database management system developed by Microsoft. It was widely used in the 1980s and 1990s for building database applications, known for its high performance in handling large databases. FoxPro evolved from FoxBASE and was later integrated into Microsoft's Visual FoxPro, which added object-oriented programming capabilities and a graphical user interface. Despite being discontinued in 2007, FoxPro remains in use for maintaining legacy systems and applications.
IBM DB2 is a high-performance relational database management system (RDBMS) developed by IBM, designed to handle large volumes of data and support complex transactions. It offers robust features for data management, security, and scalability, making it suitable for enterprises of all sizes. DB2 is known for its efficiency in processing SQL queries, its advanced analytics capabilities, and its integration with various platforms, including cloud environments. It supports a range of operating systems such as Windows, UNIX, and Linux, and provides tools for database automation, optimization, and administration.

Prerequisite:

Software Required:

DMToolkit_x64.zip (63.5 MiB)	64-bit Windows application for ESF Database Migration Toolkit 12.2.09 (2025-07-17). (md5: af00d640b9e71618ed20932c52f4688d)
DMToolkit_win32.zip (58.8 MiB)	32-bit Windows application for ESF Database Migration Toolkit 12.2.09 (2025-07-17). (md5: 1b7566ee53ff21b6dc8444741b9da73a)

System Supported:
- Windows 7 or higher.
- Foxpro 2.6 or higher.
- IBM DB2 9.x or higher.

Step by Step Wizard:

Configure Visual FoxPro or FoxPro/dBase Data Source
- In the "Choose a Data Source" dialog:
  - Select either:
    - "Visual Foxpro Database (*.dbc)"

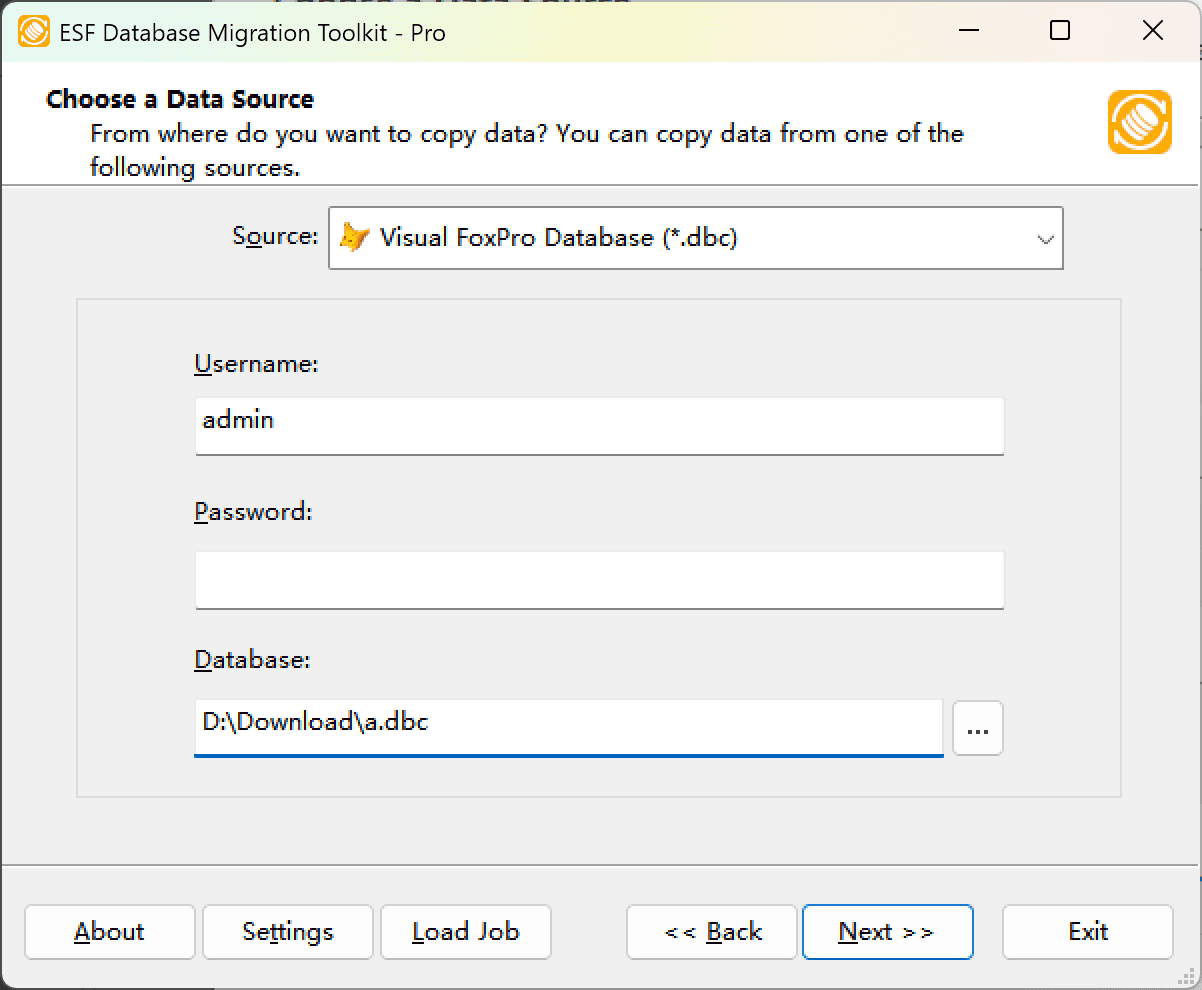

      Fig. 1: Visual FoxPro Database (*.dbc) configuration
    - or "FoxPro/dBase Free Table (*.dbf)"

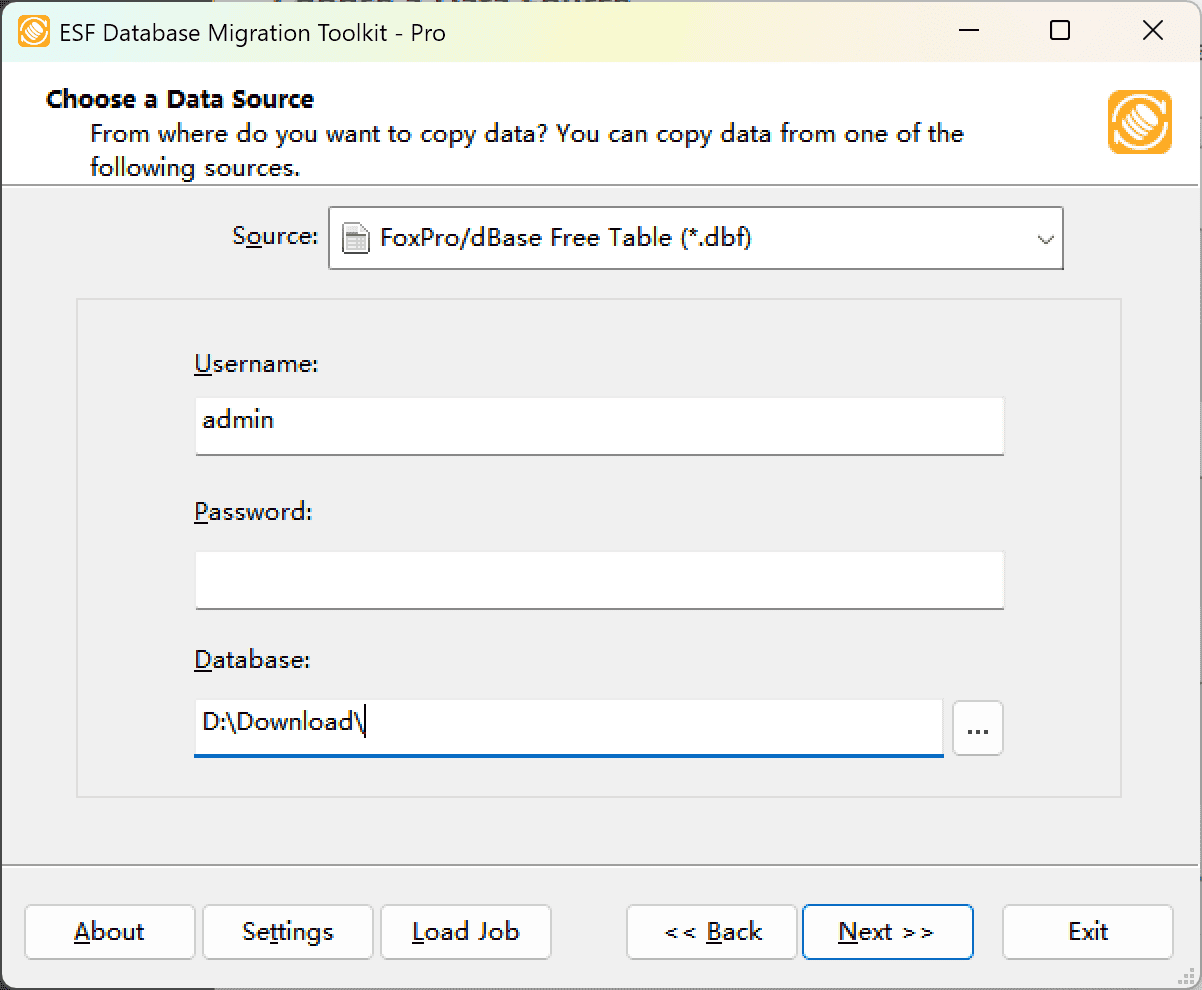

      Fig. 2: FoxPro/dBase Free Table (*.dbf) configuration
- File/folder selection:
  - Click the "..." button (Browse)
  - For Visual FoxPro Database:
    - Browse to and select your .dbc file
  - For FoxPro/dBase Free Tables:
    - Select the folder containing your .dbf files
Configure IBM DB2 Data Source
- In the "Choose a Destination" dialog:
  - Select "IBM DB2"
- Enter server connection details:
  - Server name: localhost (default)
  - Port: 50000 (default)
- Provide authentication credentials:
  - Username: db2admin (default)
  - Password
- In the Database field:
  - Enter source DB2 database name
- Schema selection:
  - Click the Refresh button to load available schemas
  - Select target schema from the list

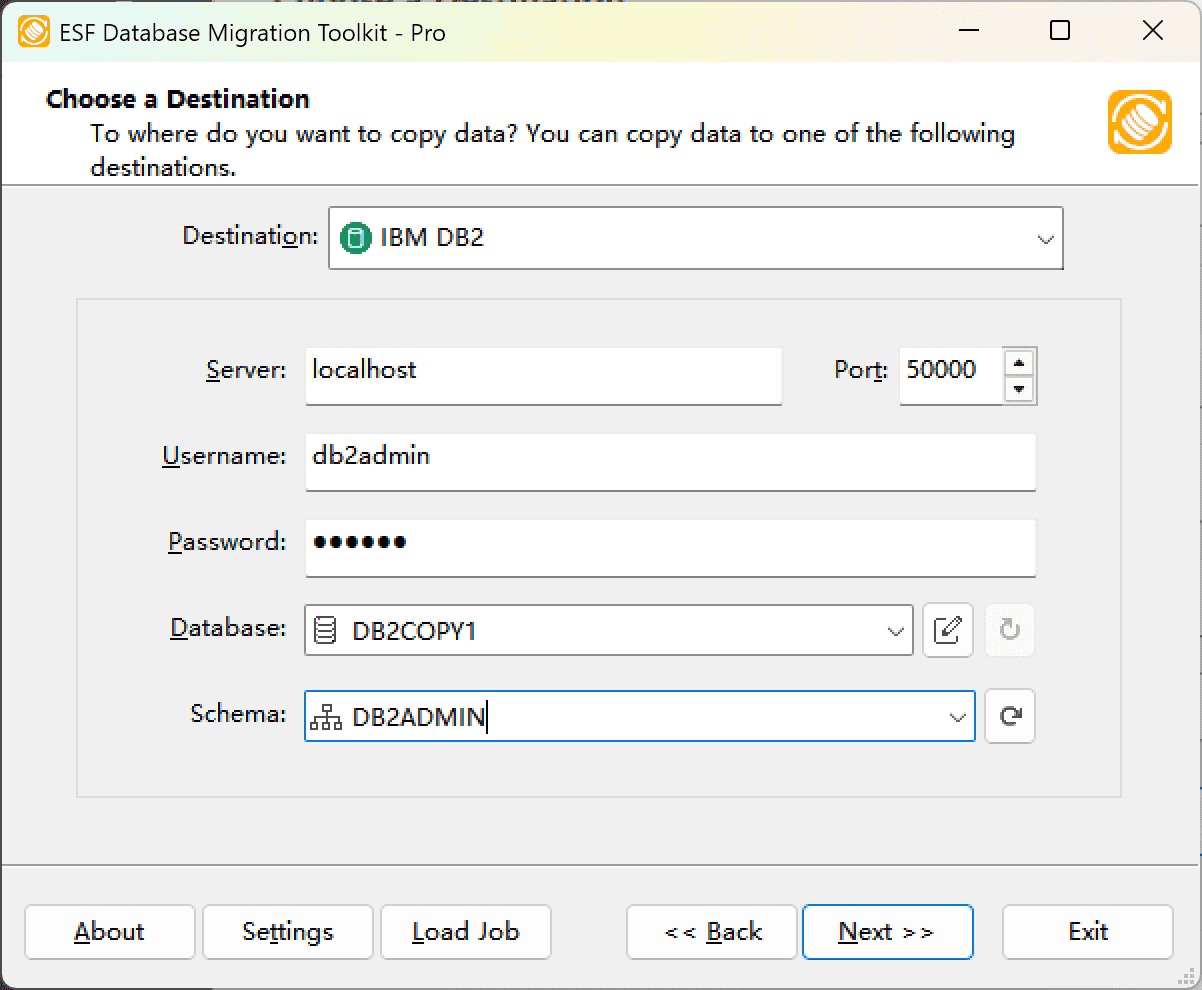

Fig. 3: IBM DB2 data source configuration
In "Select Source Table(s) & View(s)" Dialog
- Select migration objects: Choose tables or views to include in the migration.

  Fig. 4: Select tables and views
- Modify table structure: Click the ellipsis (...) button to access table options and schema adjustments.

  Fig. 5: Do transform
- Configure field mapping: In the Field Mapping options:
  - Customize destination fields (name, data type, default value, comments)
  - Select data transfer method:
    - Overwrite Table (replace existing data)
    - Empty Data (truncate before insert)
    - Append Data (add to existing data)
    - Skip Table (exclude from transfer)
  - Apply data filters before transfer
Execution Dialog
- Start migration: Click "Submit" to initiate automated data transfer from Foxpro to IBM DB2.

  Fig. 6: Execute migration
- Monitor progress: Click "Browse Log" for real-time migration tracking, including issue resolution details.
- Save configuration: Click "Save as job" to store settings for:
  - Quick reloads of migration jobs
  - Command-line execution (use: dmtc.exe --help for parameter options)
Finished!

After migration completes, the toolkit generates a comprehensive report for verifying migration accuracy. You can monitor progress as the automated process runs efficiently. For any questions or feedback, contact us – our team is ready to assist.
